Tungaloy

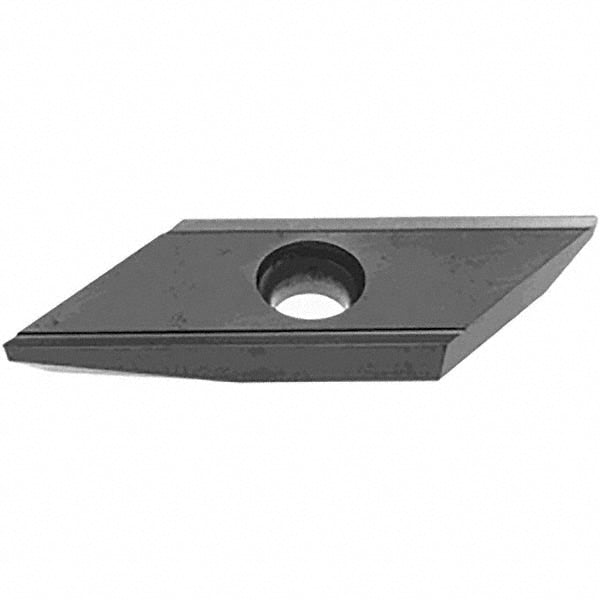

XCET310404ER NS740 Cermet Insert, Grade NS740 - Tungaloy 6821581
MFR# 6821581ISO/ANSI# XCET310404ER NS740Cat# XCET310404ERSeries XCET
$89.74List $115.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeNS740
MaterialCermet
Description
The Tungaloy 6821581 is a XCET310404ER NS740 cermet indexable insert, grade NS740. Suited for steel, stainless steel.
Specifications
Ansi codeXCET310404ER NS740
Chip breakerCommon
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityECC31
Cutting edge styleHoned
Included angle degree45
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialCermet
Insert shapeParallelogram
Insert size31
Insert size code310404
Insert styleXCET
Iso codeXCET310404ER NS740
Length1.1161
Length range1.0000+
Manufacturers catalog numberXCET310404ER
Manufacturer gradeNS740
Material applicationSteel; Stainless Steel
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width in1/2
