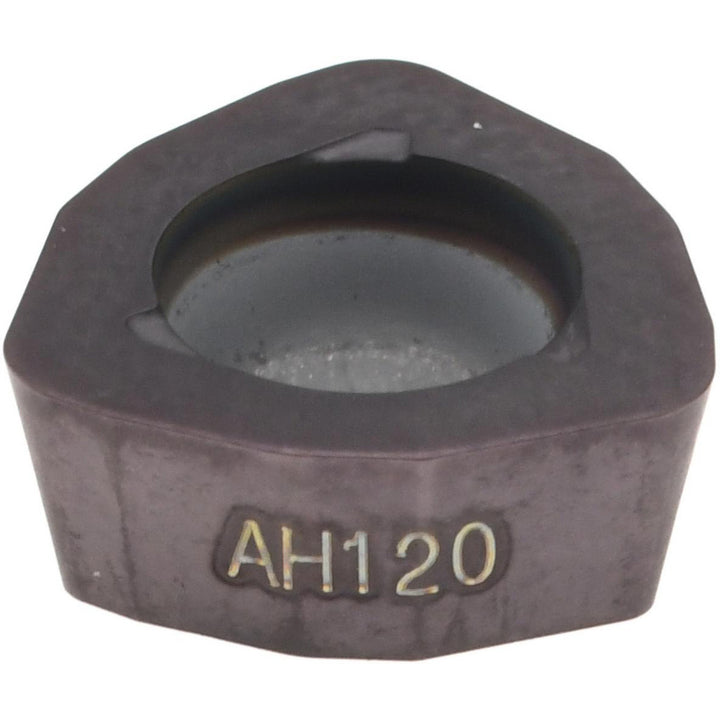

WPMT06X415ZPR-MH AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6821763
MFR# 6821763ISO/ANSI# WPMT06X415ZPR-MH AH120Cat# WPMT06X415ZPR-MHSeries WPMT
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6821763 is a WPMT06X415ZPR-MH AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeWPMT06X415ZPR-MH AH120
Chip breakerMH
Coating finishTiAlN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityEXP05/06/08/09; TXP05/06/08/09
Cutting edge styleHoned
Included angle degree80
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size06
Insert size code06X415
Insert styleWPMT
Iso codeWPMT06X415ZPR-MH AH120
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberWPMT06X415ZPR-MH
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsISO
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.4720
