Tungaloy

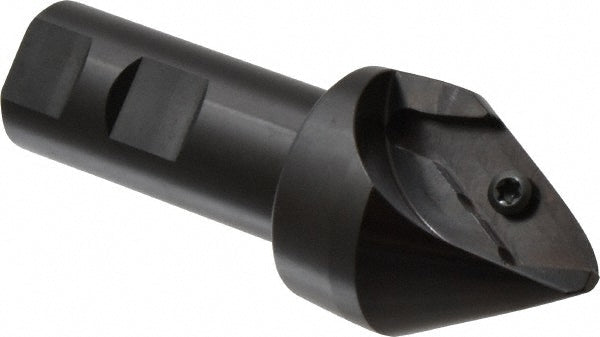

Indexable End Mills - Tungaloy 6822058
MFR# 6822058
$461.46
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
MaterialSolid Carbide
Description
The Tungaloy 6822058 indexable end mills. Suited for universal.
Specifications
Axial rake angle degrees-5 to -3
Compatible insert size codeXCET3104
Cutting directionRight Hand
End mill materialSolid Carbide
Functional length5.1190
Head length1.9690
Included angle degree30
Insert holding methodScrew
Insert styleXCET
Maximum body diameter1.0000
Maximum cutting diameter1.5750
Maximum depth of cut1.0040
Maximum rpm3000
Minimum cutting diameter1.3380
Number of cutter inserts1
Number of flutes1
Overall height1.5750
Overall length5.1190
Primary workpiece materialUniversal
Radial rake angle degrees-15 to -12
Shank diameter in1
Shank typeWeldon Flat
StandardsISO
Toolholder styleECC
Tool applicationChamfering
