Tungaloy

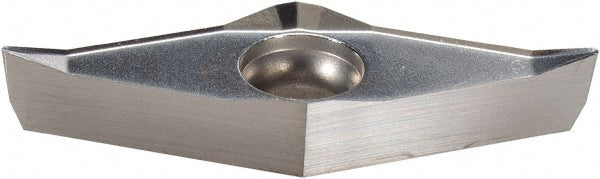

VCGT331AL Carbide Insert, Grade KS05F - Tungaloy 6822336
MFR# 6822336ISO/ANSI# VCGT 331 ALSeries VCGT-AL
$24.98List $32.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKS05F
MaterialCarbide
Description
The Tungaloy 6822336 is a VCGT331AL carbide indexable insert, grade KS05F. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVCGT 331 AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT331AL
Length range0.7000 - 10.0000
Manufacturers catalog number6822336
Manufacturer gradeKS05F
Material gradeFine Grain
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
