Tungaloy

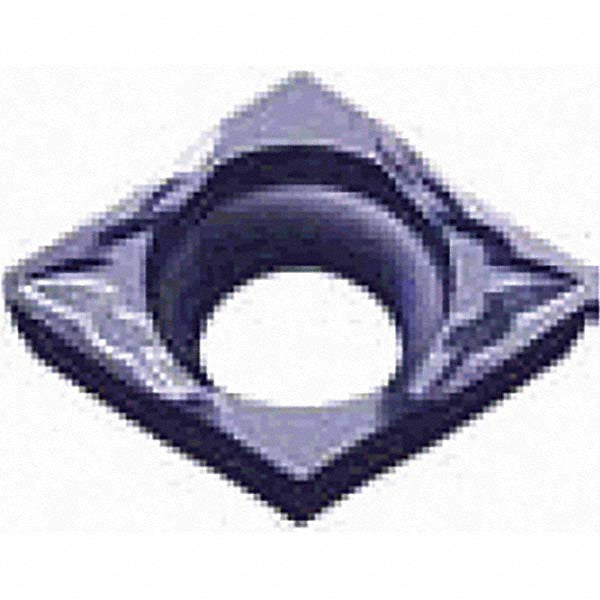

EPGT040104-JS Carbide Insert, Grade SH730, TiAlN - Tungaloy 6837556
MFR# 6837556ISO/ANSI# EPGT 521 JSSeries EPGT-JS
$26.32List $33.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeSH730
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6837556 is a EPGT040104-JS carbide indexable insert, grade SH730, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerJS
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0910
Included angle75
Industry standard numberEPGT 521 JS
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert length0.1610
Insert materialCarbide
Insert shapeDiamond
Insert size code521
Insert styleEPGT
Insert thickness in1/16
Iso codeEPGT040104-JS
Length range0.0000 - 0.3000
Manufacturers catalog number6837556
Manufacturer gradeSH730
Material gradeP20; P35; M20; M35; S05; S15
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in5/32
Wiper edgeNo
