Tungaloy

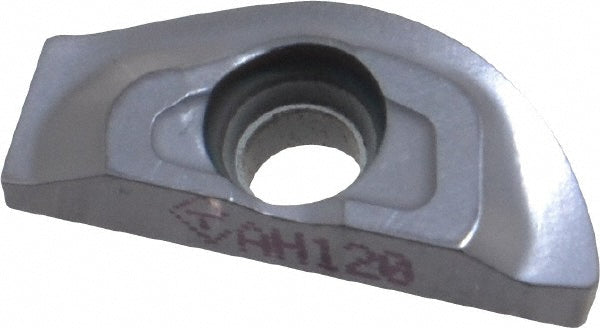

ZPET075U-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6837715
MFR# 6837715ISO/ANSI# ZPET075U-MJ AH120Cat# ZPET075U-MJSeries ZPET
$64.87List $83.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6837715 is a ZPET075U-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeZPET075U-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in3/8
Cutter series compatibilityEBP
Cutting edge styleHoned
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size075
Insert size code075
Insert styleZPET
Iso codeZPET075U-MJ AH120
Manufacturers catalog numberZPET075U-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Multi use toolNo
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertDouble
StandardsISO
Thickness0.1690
Thickness range0.1500 to 0.1750
