Tungaloy

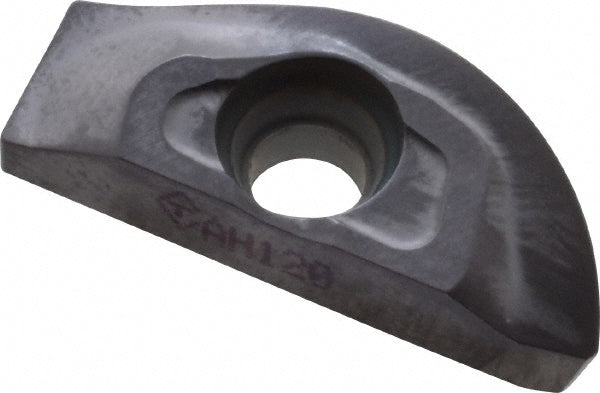

ZPET100U-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6837716
MFR# 6837716ISO/ANSI# ZPET100U-MJ AH120Cat# ZPET100U-MJSeries ZPET
$97.61List $125.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6837716 is a ZPET100U-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, super-alloys & titanium.
Specifications
Ansi codeZPET100U-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/2
Cutter series compatibilityEBP
Cutting directionRight Hand
Cutting edge styleHoned
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size100
Insert size code100
Insert styleZPET
Iso codeZPET100U-MJ AH120
Manufacturers catalog numberZPET100U-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Multi use toolNo
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Super-Alloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertDouble
StandardsISO
Thickness0.2280
Thickness range0.2200 to 0.2350
