Tungaloy

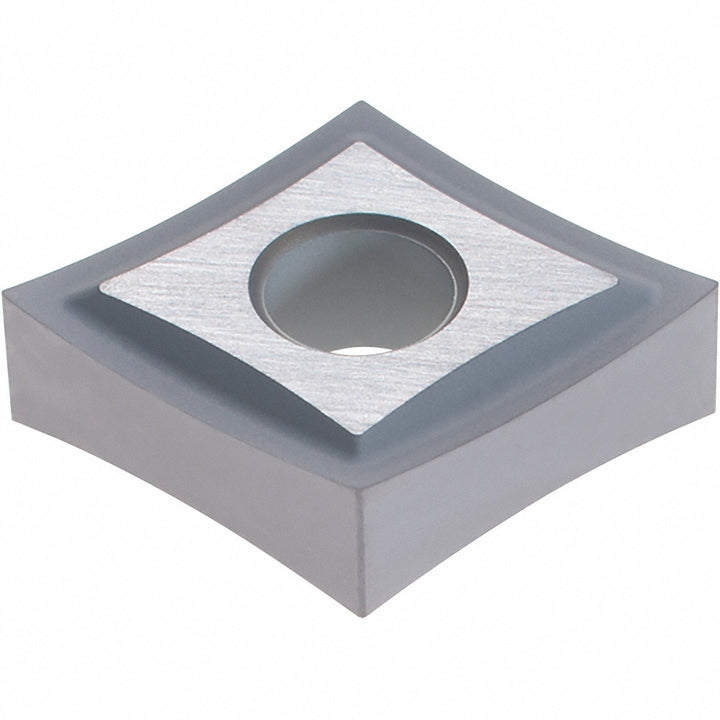

CNGP430.5-28 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6843822
MFR# 6843822ISO/ANSI# CNGP 430.5-28Series CNGP-28
$27.26List $34.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeAH120
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6843822 is a CNGP430.5-28 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breaker28
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNGP 430.5-28
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code430.5
Insert styleCNGP
Insert thickness in3/16
Iso codeCNGP430.5-28
Length range0.5000 - 0.6000
Manufacturers catalog number6843822
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
