Tungaloy

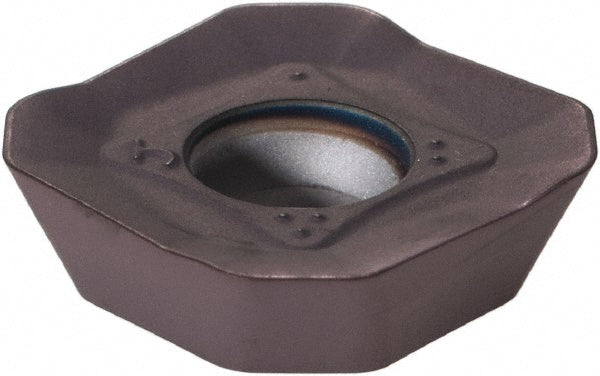

SWMT13T3AFPR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6846104
MFR# 6846104ISO/ANSI# SWMT13T3AFPR-MJ AH120Cat# SWMT13T3AFPR-MJSeries SWMT
$15.40List $19.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC35/64
ShapeSquare
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6846104 is a SWMT13T3AFPR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeSWMT13T3AFPR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityTAW13; EAW13
Cutting edge styleHoned
Included angle degree90
Inscribed circle in35/64
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code13T3
Insert styleSWMT
Iso codeSWMT13T3AFPR-MJ AH120
Length in35/64
Length range0.5000 to 0.6000
Manufacturers catalog numberSWMT13T3AFPR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.1570
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle18.50
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in35/64
