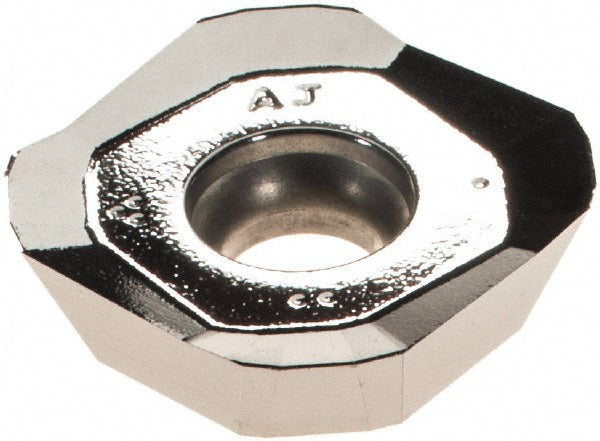

SWGT13T3AFFR-AJ KS05F Solid Carbide Insert, Grade KS05F - Tungaloy 6846119

Tungaloy

SWGT13T3AFFR-AJ KS05F Solid Carbide Insert, Grade KS05F - Tungaloy 6846119

MFR# 6846119ISO/ANSI# SWGT13T3AFFR-AJ KS05FCat# SWGT13T3AFFR-AJSeries SWGT

$22.15List $28.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKS05F
MaterialSolid Carbide

Description

The Tungaloy 6846119 is a SWGT13T3AFFR-AJ KS05F solid carbide indexable insert, grade KS05F. Suited for cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeSWGT13T3AFFR-AJ KS05F
Chip breakerAJ
Coating processUncoated
Cutter series compatibilityTAW13; EAW13
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.5550
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code13T3
Insert styleSWGT
Iso codeSWGT13T3AFFR-AJ KS05F
Length0.5550
Length range0.5000 to 0.6000
Manufacturers catalog numberSWGT13T3AFFR-AJ
Manufacturer gradeKS05F
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeK05; S05; N05
Maximum depth of cut0.1570
Multi use toolNo
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle17
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5550
