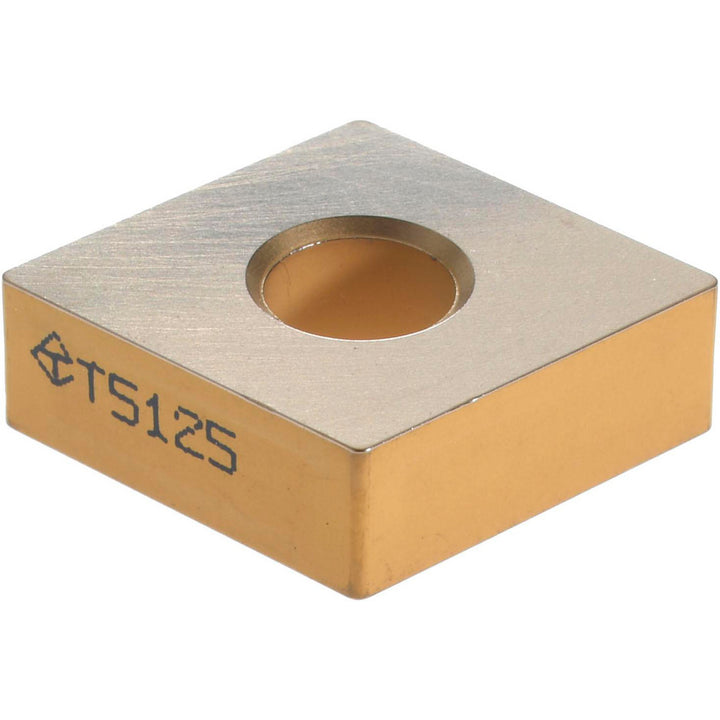

CNMA431 Carbide Insert, Grade T5125, TiCN - Tungaloy 6850125
MFR# 6850125ISO/ANSI# CNMA120404Series CNM/GA
$14.70List $18.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeT5125
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6850125 is a CNMA431 carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCNMA431
Ansi size code431
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Industry standard numberCNMA 431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA431
Iso insert codeCNMA120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number6850125
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
