Tungaloy

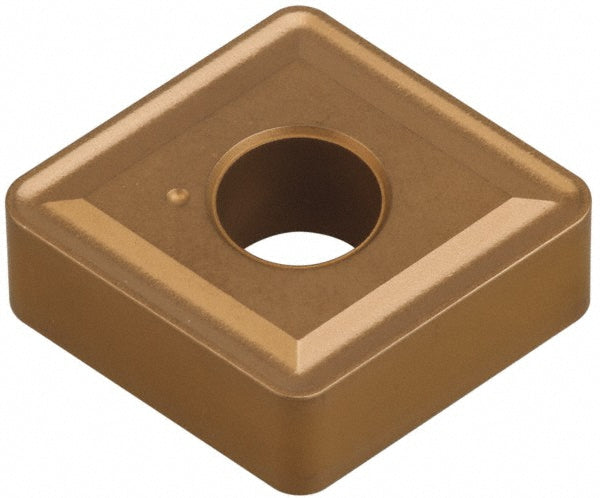

CNMG432CM Carbide Insert, Grade T5125, TiCN - Tungaloy 6850130
MFR# 6850130ISO/ANSI# CNMG 432 CMSeries CNMG-CM
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT5125
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6850130 is a CNMG432CM carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.
Specifications
Chip breakerCM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432 CM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG432CM
Length range0.5000 - 0.6000
Manufacturers catalog number6850130
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
