Tungaloy

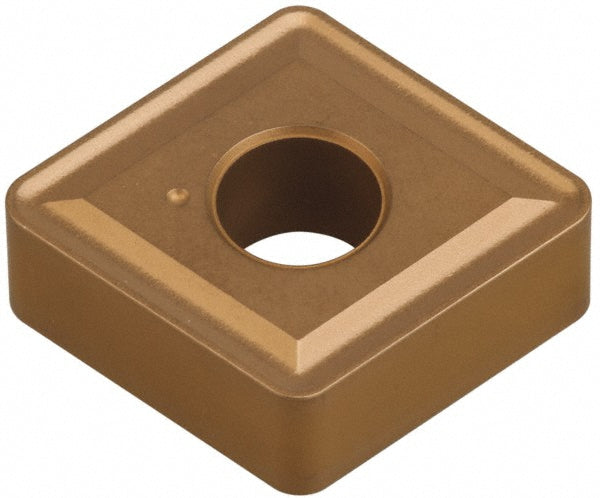

CNMA542 Carbide Insert, Grade T5105, TiCN - Tungaloy 6850151
MFR# 6850151ISO/ANSI# CNMA 542Series CNM/GA
$26.08List $33.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeT5105
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6850151 is a CNMA542 carbide indexable insert, grade T5105, TiCN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMA 542
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code542
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA542
Length range0.6000 - 0.6500
Manufacturers catalog number6850151
Manufacturer gradeT5105
Material gradeK05; K15
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
