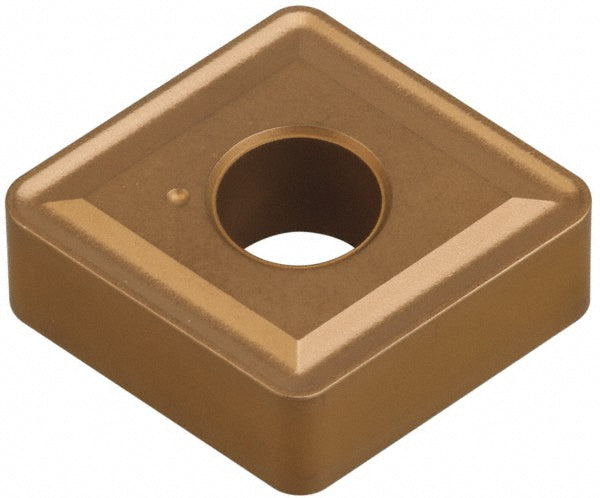

CNMA543 Carbide Insert, Grade T5125, TiCN - Tungaloy 6850162

Tungaloy

CNMA543 Carbide Insert, Grade T5125, TiCN - Tungaloy 6850162

MFR# 6850162ISO/ANSI# CNMA 543Series CNM/GA

$26.08List $33.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeT5125
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6850162 is a CNMA543 carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMA 543
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA543
Length range0.6000 - 0.6500
Manufacturers catalog number6850162
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
