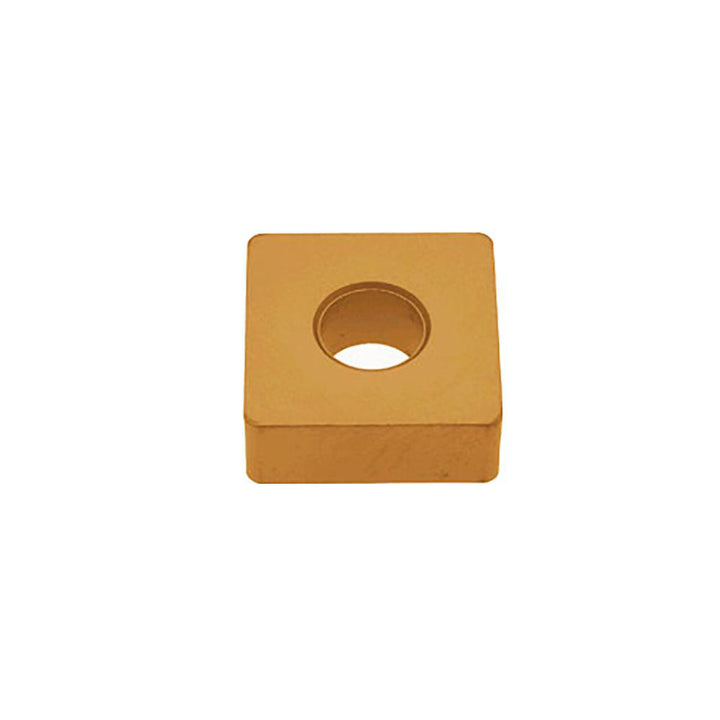

SNMA432 Carbide Insert, Grade T5105, TiCN - Tungaloy 6850255

Tungaloy

SNMA432 Carbide Insert, Grade T5105, TiCN - Tungaloy 6850255

MFR# 6850255ISO/ANSI# SNMA 432Series SNM/GA

$14.70List $18.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeT5105
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6850255 is a SNMA432 carbide indexable insert, grade T5105, TiCN coated. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle90degree
Industry standard numberSNMA 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMA
Insert thickness in3/16
Iso codeSNMA432
Length range0.5000 - 0.6000
Manufacturers catalog number6850255
Manufacturer gradeT5105
Material gradeK05; K15
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
