Tungaloy

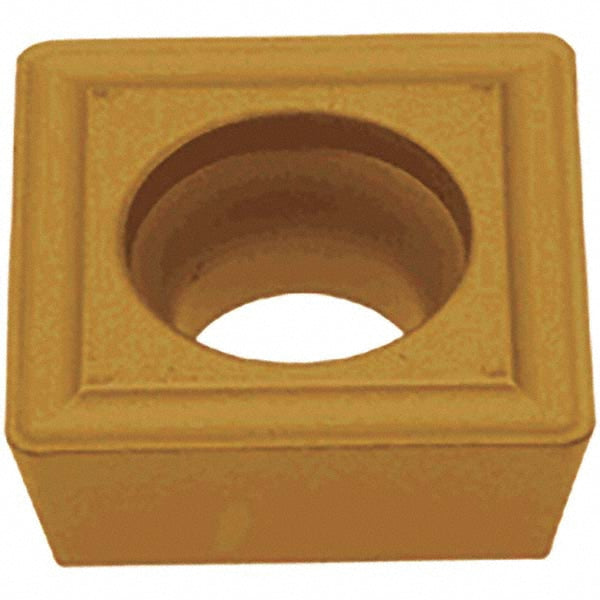

SPMT 090308 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6852460
MFR# 6852460ISO/ANSI# SPMT 322-24Series SPMT-24
$12.75List $16.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeAH120
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6852460 is a SPMT 090308 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breaker24
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle90degree
Industry standard numberSPMT 322-24
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code322
Insert styleSPMT
Insert thickness in1/8
Iso codeSPMT 090308
Length range0.3000 - 0.4000
Manufacturers catalog number6852460
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle6
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
