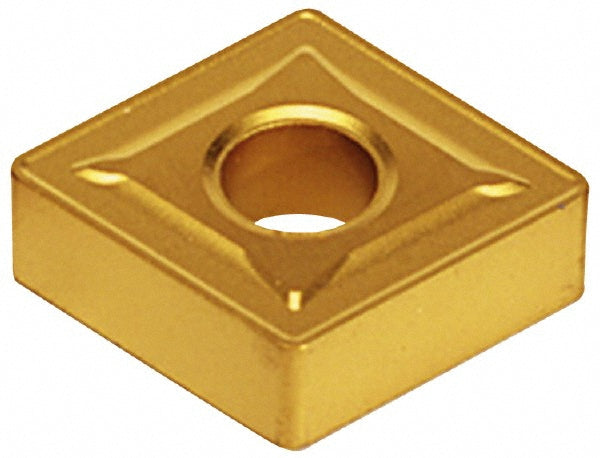

CNMG 643 Carbide Insert, Grade T5125, TiCN - Tungaloy 6852950

Tungaloy

CNMG 643 Carbide Insert, Grade T5125, TiCN - Tungaloy 6852950

MFR# 6852950ISO/ANSI# CNMG 643Series CNMG

$31.93List $40.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeT5125
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6852950 is a CNMG 643 carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.

Specifications

Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle80degree
Industry standard numberCNMG 643
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643
Length range0.7000 - 10.0000
Manufacturers catalog number6852950
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
