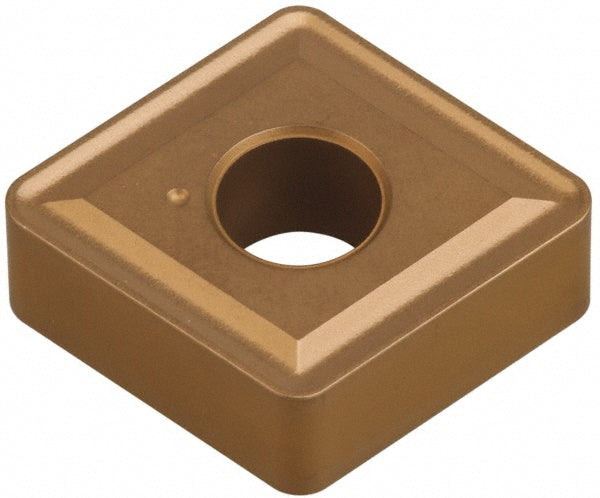

CNMA434 Carbide Insert, Grade T5125, TiCN - Tungaloy 6852955

Tungaloy

CNMA434 Carbide Insert, Grade T5125, TiCN - Tungaloy 6852955

MFR# 6852955ISO/ANSI# CNMA 434Series CNM/GA

$14.70List $18.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT5125
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6852955 is a CNMA434 carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMA 434
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code434
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA434
Length range0.5000 - 0.6000
Manufacturers catalog number6852955
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
