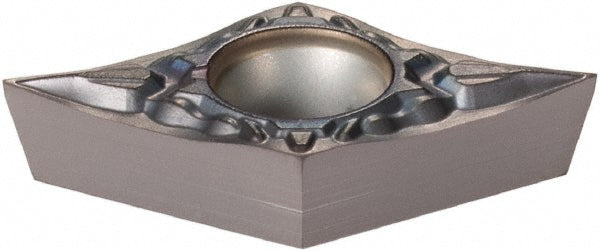

DCGT11T301FNJS Carbide Insert, Grade SH730, TiAlN - Tungaloy 6853996

Tungaloy

DCGT11T301FNJS Carbide Insert, Grade SH730, TiAlN - Tungaloy 6853996

MFR# 6853996ISO/ANSI# DCGT 32.50 FN-JSSeries DCGT-JS

$23.66List $30.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeSH730
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6853996 is a DCGT11T301FNJS carbide indexable insert, grade SH730, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerJS
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCGT 32.50 FN-JS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T301FNJS
Length range0.7000 - 10.0000
Manufacturers catalog number6853996
Manufacturer gradeSH730
Material gradeP20; P35; M20; M35; S05; S15
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
