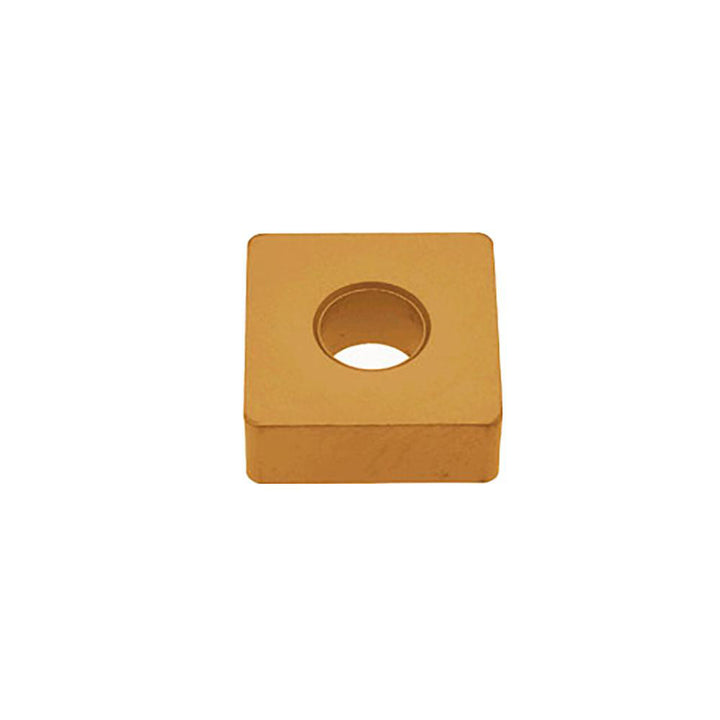

SNMA322 Carbide Insert, Grade T5105, TiCN - Tungaloy 6854105

Tungaloy

SNMA322 Carbide Insert, Grade T5105, TiCN - Tungaloy 6854105

MFR# 6854105ISO/ANSI# SNMA 322Series SNM/GA

$10.57List $13.55 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeT5105
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6854105 is a SNMA322 carbide indexable insert, grade T5105, TiCN coated. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle90degree
Industry standard numberSNMA 322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code322
Insert styleSNMA
Insert thickness in1/8
Iso codeSNMA322
Length range0.3000 - 0.4000
Manufacturers catalog number6854105
Manufacturer gradeT5105
Material gradeK05; K15
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
