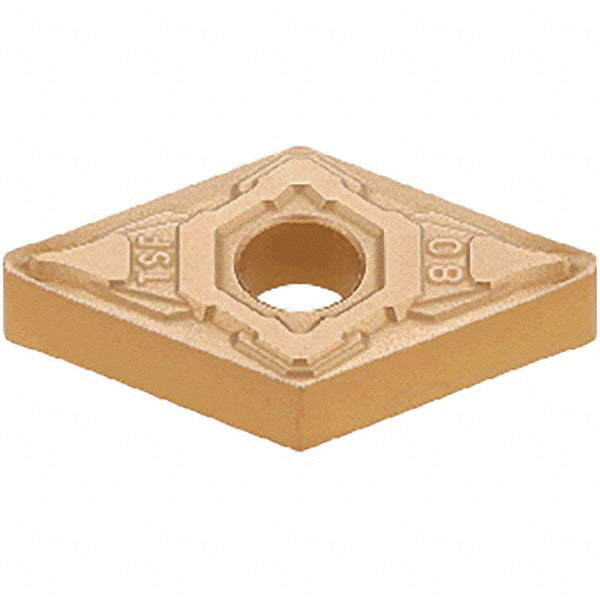

DNMG 150404 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6854299

Tungaloy

DNMG 150404 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6854299

MFR# 6854299ISO/ANSI# DNMG 431 TSFSeries DNMG-TSF

$20.97List $26.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6854299 is a DNMG 150404 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerTSF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG 431 TSF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 150404
Length range0.7000 - 10.0000
Manufacturers catalog number6854299
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
