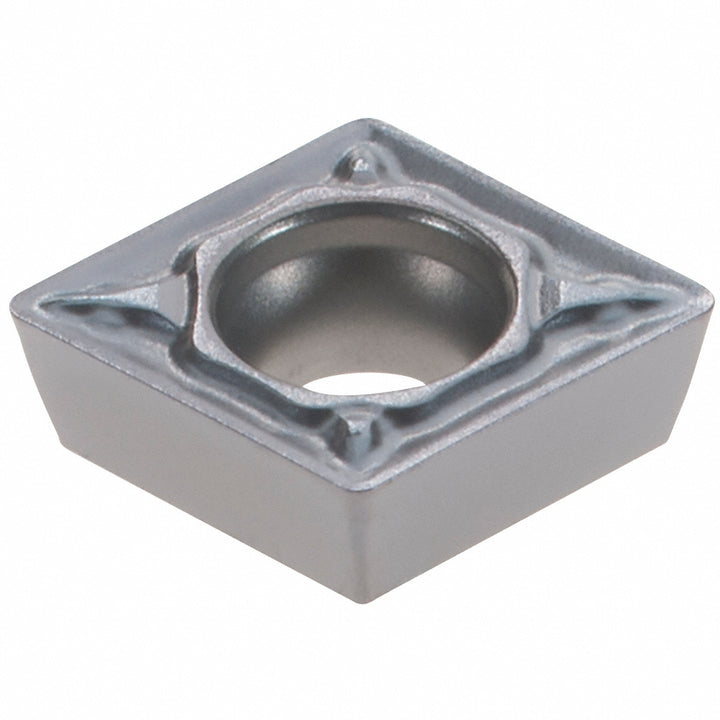

CPMT21.51PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856770

Tungaloy

CPMT21.51PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856770

MFR# 6856770ISO/ANSI# CPMT 21.51 PSSeries CPMT-PS

$12.09List $15.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeAH725
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6856770 is a CPMT21.51PS carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerPS
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCPMT 21.51 PS
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT21.51PS
Length range0.0000 - 0.3000
Manufacturers catalog number6856770
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
