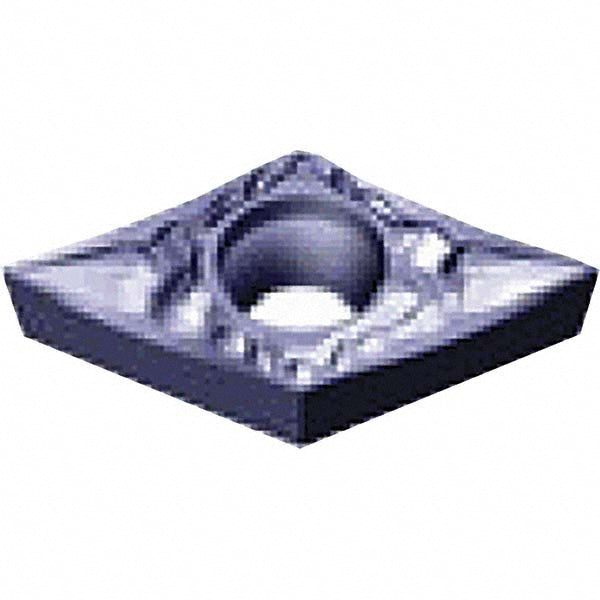

DCGT 11T301N Carbide Insert, Grade AH725, TiAlN - Tungaloy 6857011

Tungaloy

DCGT 11T301N Carbide Insert, Grade AH725, TiAlN - Tungaloy 6857011

MFR# 6857011ISO/ANSI# DCGT 32.50 N-JSSeries DCGT-JS

$23.66List $30.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeAH725
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6857011 is a DCGT 11T301N carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerJS
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCGT 32.50 N-JS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11T301N
Length range0.7000 - 10.0000
Manufacturers catalog number6857011
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
