Tungaloy

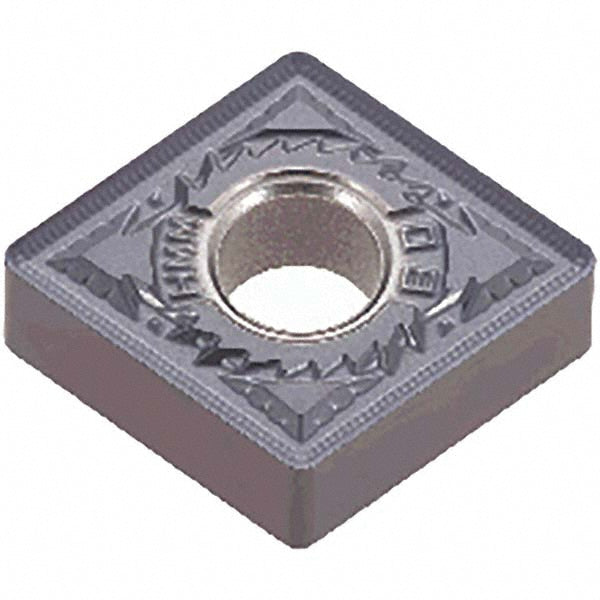

CNMG432HMM Carbide Insert, Grade AH905, AlTiN - Tungaloy 6859436
MFR# 6859436ISO/ANSI# CNMG 432 HMMSeries CNMG-HMM
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeAH905
MaterialCarbide
CoatingAlTiN
Description
The Tungaloy 6859436 is a CNMG432HMM carbide indexable insert, grade AH905, AlTiN coated. Suited for superalloys & titanium.
Specifications
Chip breakerHMM
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432 HMM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG432HMM
Length range0.5000 - 0.6000
Manufacturers catalog number6859436
Manufacturer gradeAH905
Material gradeS01; S10
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
