Tungaloy

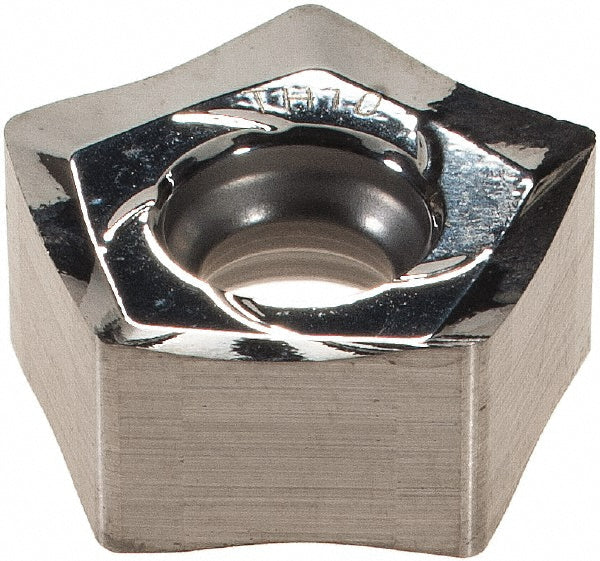

PNCU0905GNFR-AJ TH10 Solid Carbide Insert, Grade TH10 - Tungaloy 6860117
MFR# 6860117ISO/ANSI# PNCU0905GNFR-AJ TH10Cat# PNCU0905GNFR-AJSeries PNCU
$24.63List $31.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapePentagon
GradeTH10
MaterialSolid Carbide
Description
The Tungaloy 6860117 is a PNCU0905GNFR-AJ TH10 solid carbide indexable insert, grade TH10. Suited for cast iron, hard material, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codePNCU0905GNFR-AJ TH10
Chip breakerAJ
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityTEN09; EEN09
Cutting edge styleSharp
Included angle degree108
Inscribed circle0.4800
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size09
Insert size code0905
Insert stylePNCU
Iso codePNCU0905GNFR-AJ TH10
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog numberPNCU0905GNFR-AJ
Manufacturer gradeTH10
Material applicationCast Iron; Hard Material; Non-Ferrous Metal; Superalloys & Titanium
Material gradeP10; M10; K10; N10
Maximum depth of cut0.2520
Multi use toolNo
Number of cutting edges10
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsISO
Thickness0.2460
Thickness range0.2350 to 0.2500
Width0.4800
