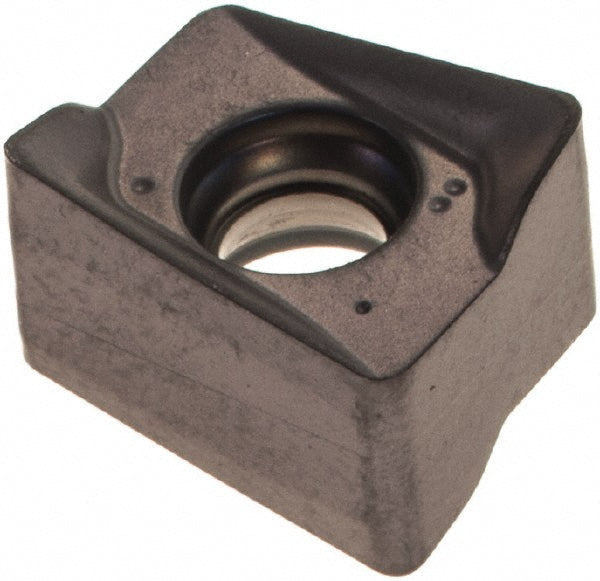

LQMU110708PNER-MJ AH140 Solid Carbide Insert, Grade AH140, TiAlN - Tungaloy 6861242
MFR# 6861242ISO/ANSI# LQMU110708PNER-MJ AH140Cat# LQMU110708PNER-MJSeries LQMU
$25.76List $33.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH140
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6861242 is a LQMU110708PNER-MJ AH140 solid carbide indexable insert, grade AH140, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeLQMU110708PNER-MJ AH140
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityTPQ11; 18; EPQ11
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.3540
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size11
Insert size code110708
Insert styleLQMU
Iso codeLQMU110708PNER-MJ AH140
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberLQMU110708PNER-MJ
Manufacturer gradeAH140
Material applicationSteel; Stainless Steel
Material gradeM30; M45
Maximum depth of cut0.3540
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsISO
Thickness0.3270
Thickness range0.2500 to 0.3500
Width0.3540
