Tungaloy

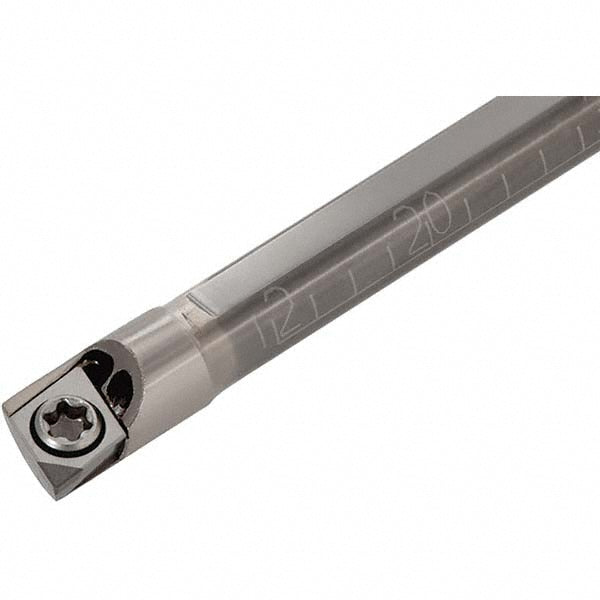

Indexable Boring - Tungaloy 6862266
MFR# 6862266Series Isoturn
$391.62
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tungaloy 6862266 indexable boring. Series Isoturn.
Specifications
Center to cutting edge (mm)2.30
Compatible insert shapeDiamond
Compatible insert size code03X1
Compatible insert thickness (mm)1.39
Coolant throughYes
Cutting tool applicationBoring; Turning
Hand of holderRight Hand
Insert compatibilityEP..
Insert holding methodScrew
Insert inscribed circle (mm)3.57
Lead angle100
Maximum bore depth (mm)9.00
Minimum bore diameter (mm)4.50
Multi use toolNo
Number of inserts used on toolholder1
Overall length (mm)90.00
RakeNegative (Radial); Neutral (Axial)
Shank diameter (mm)4.00
Toolholder styleE-SEXP
Tool materialSolid Carbide (Shank)
