Tungaloy

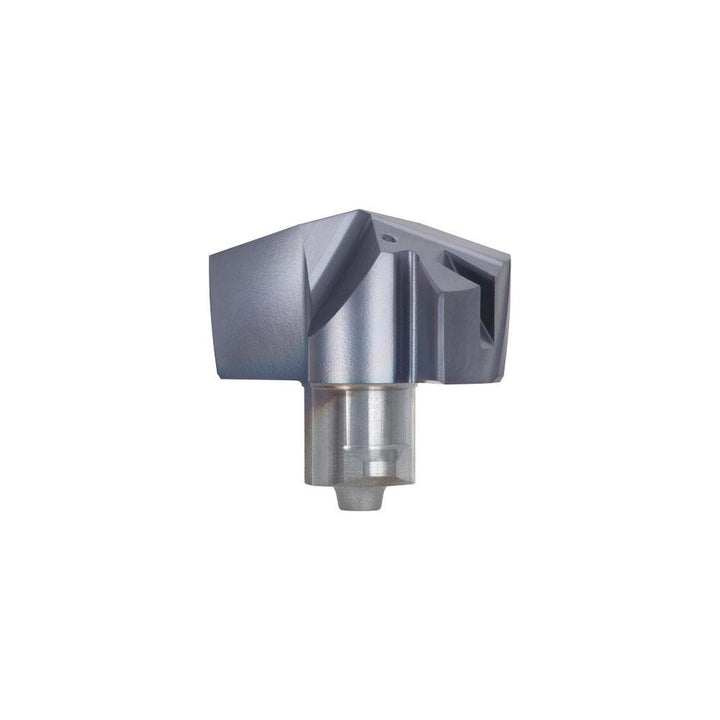

Carbide Insert, Grade AH725, TiAlN - Tungaloy 6863095
MFR# 6863095Series Drill Meister
$114.93List $147.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAH725
CoatingTiAlN
Description
The Tungaloy 6863095 is a carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting diameter0.7087
Drill point angle140
Insert geometryDMP
Insert seat size18
Iso 90012008
Iso numberDMP180
Manufacturer gradeAH725
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
StandardsAS 9100; ISO 14001
Tip materialSolid Carbide
