Tungaloy

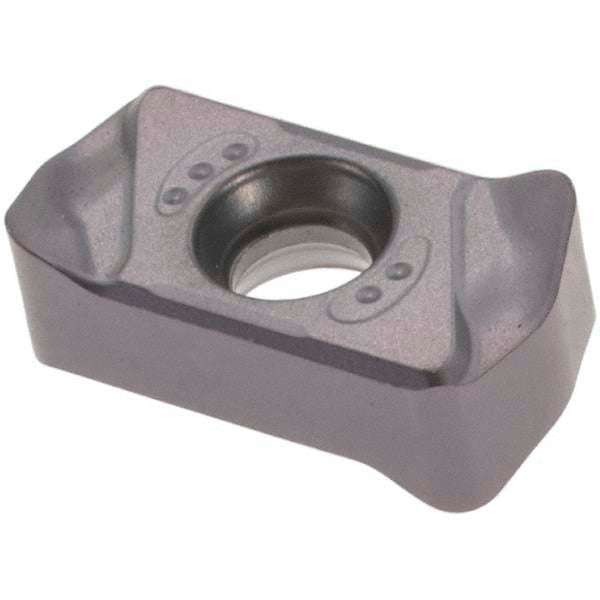

LNMU0303ZER-MJ AH130 Solid Carbide Insert, Grade AH130, TiAlN - Tungaloy 6864164
MFR# 6864164ISO/ANSI# LNMU0303ZER-MJ AH130Cat# LNMU0303ZER-MJSeries LNMU
$18.90List $24.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH130
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6864164 is a LNMU0303ZER-MJ AH130 solid carbide indexable insert, grade AH130, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNMU0303ZER-MJ AH130
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityEXN03; TXN03; HXN03-M; EXN03-C; HXN03-M-C; EXN03-N
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size03
Insert size code0303
Insert styleLNMU
Iso codeLNMU0303ZER-MJ AH130
Manufacturers catalog numberLNMU0303ZER-MJ
Manufacturer gradeAH130
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP25; M25
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsISO
Thickness0.1690
Thickness range0.1500 to 0.1750
Width0.2360
