Tungaloy

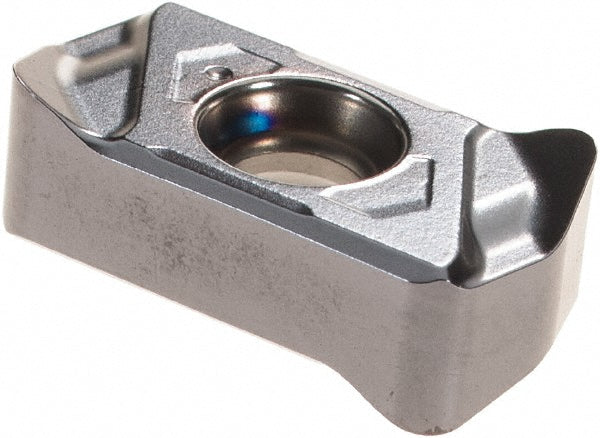

LNMU0303ZER-ML AH725 Solid Carbide Insert, Grade AH725, TiAlN - Tungaloy 6864165
MFR# 6864165ISO/ANSI# LNMU0303ZER-ML AH725Cat# LNMU0303ZER-MLSeries LNMU
$18.90List $24.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH725
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6864165 is a LNMU0303ZER-ML AH725 solid carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeLNMU0303ZER-ML AH725
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityEXN03; TXN03; HXN03-M; EXN03-C; HXN03-M-C; EXN03-N
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size03
Insert size code0303
Insert styleLNMU
Iso codeLNMU0303ZER-ML AH725
Manufacturers catalog numberLNMU0303ZER-ML
Manufacturer gradeAH725
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP15; M15; K25; S15
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsISO
Thickness0.1690
Thickness range0.1500 to 0.1750
Width0.2360
