Tungaloy

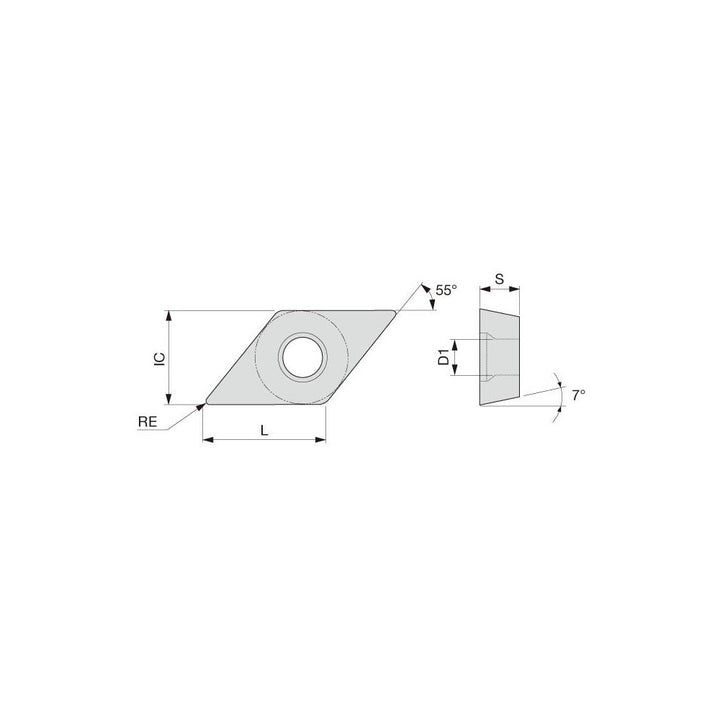

DCMT070208-PSS AH725 Carbide Insert, Grade AH725, TiAlN - Tungaloy 6864925
MFR# 6864925ISO/ANSI# DCMT 21.52 PSSSeries DCMT-PSS
$12.36List $15.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAH725
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6864925 is a DCMT070208-PSS AH725 carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chip breakerPSS
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle55
Industry standard numberDCMT 21.52 PSS
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070208-PSS AH725
Length range0.6000 - 0.6500
Manufacturers catalog number6864925
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
