DCMT 070202 Carbide Insert, Grade AH725, TiAlN - Tungaloy 6865358

MFR# 6865358ISO/ANSI# DCMT 21.50.5 PSFSeries DCMT-PSF

$12.36List $15.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeAH725
MaterialCarbide
CoatingTiAlN

Description

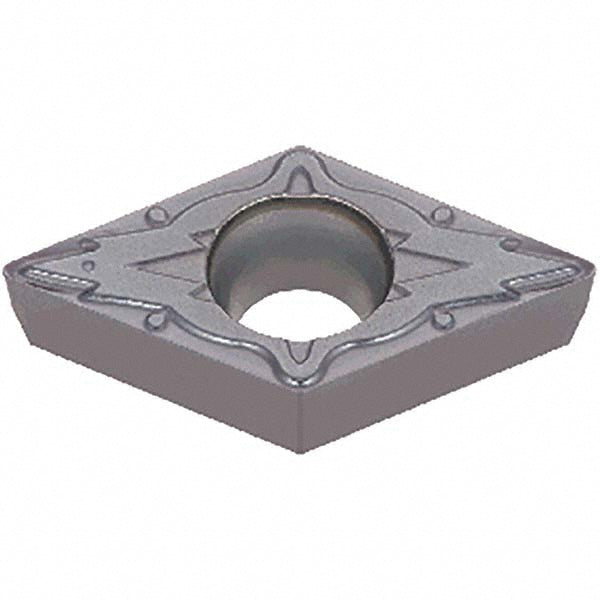

The Tungaloy 6865358 is a DCMT 070202 carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerPSF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle55degree
Industry standard numberDCMT 21.50.5 PSF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.50.5
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 070202
Length range0.6000 - 0.6500
Manufacturers catalog number6865358
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle20
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
