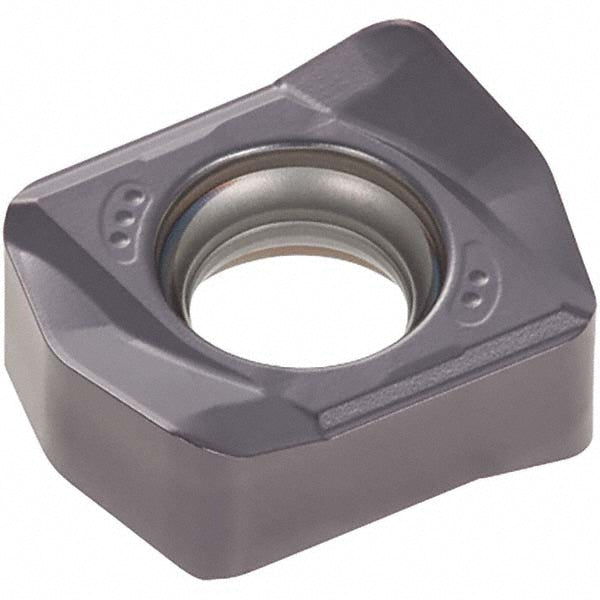

LNMU06X5ZER-MJ AH130 Solid Carbide Insert, Grade AH130, TiAlN - Tungaloy 6869923

Tungaloy

LNMU06X5ZER-MJ AH130 Solid Carbide Insert, Grade AH130, TiAlN - Tungaloy 6869923

MFR# 6869923ISO/ANSI# LNMU06X5ZER-MJ AH130Cat# LNMU06X5ZER-MJSeries LNMU

$23.28List $29.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeAH130
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6869923 is a LNMU06X5ZER-MJ AH130 solid carbide indexable insert, grade AH130, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNMU06X5ZER-MJ AH130
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityEXN06; TXN06
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4720
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code06X5
Insert styleLNMU
Iso codeLNMU06X5ZER-MJ AH130
Length0.2360
Length range0.0000 to 0.3200
Manufacturers catalog numberLNMU06X5ZER-MJ
Manufacturer gradeAH130
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP25; M25
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsISO
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.4720
