Tungaloy

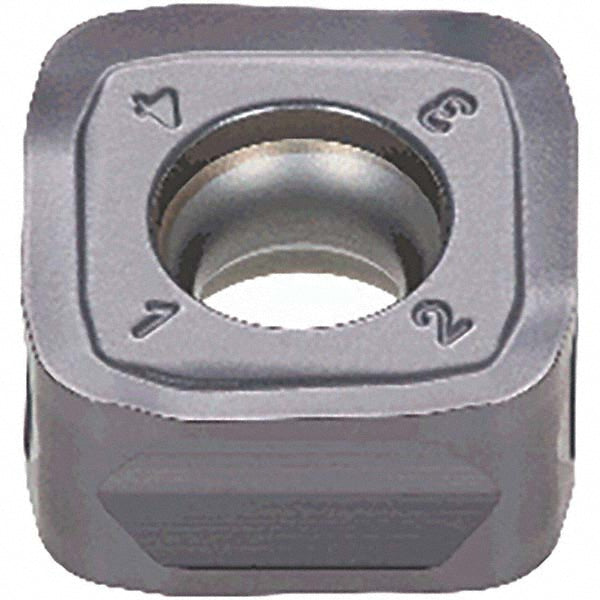

SQMU1206ZSR-MJ AH130 Solid Carbide Insert, Grade AH130, TiAlN - Tungaloy 6869927
MFR# 6869927ISO/ANSI# SQMU1206ZSR-MJ AH130Cat# SQMU1206ZSR-MJSeries SQMU
$36.61List $46.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeAH130
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6869927 is a SQMU1206ZSR-MJ AH130 solid carbide indexable insert, grade AH130, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSQMU1206ZSR-MJ AH130
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityTXQ
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.4610
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1206
Insert styleSQMU
Iso codeSQMU1206ZSR-MJ AH130
Length0.4610
Length range0.4500 to 0.5000
Manufacturers catalog numberSQMU1206ZSR-MJ
Manufacturer gradeAH130
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP25; M25
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Single or double sided insertDouble
StandardsISO
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.4610
