Tungaloy

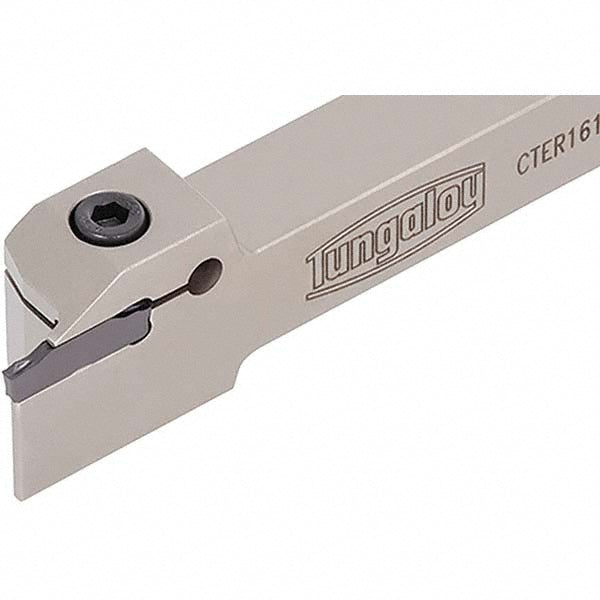

Indexable Grooving - Tungaloy 6880633
MFR# 6880633Cat# CTER16-2T17Series TungCut
$205.65
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tungaloy 6880633 indexable grooving. Suited for universal. Series TungCut.
Specifications
Back of bar to cutting edge0.9250
Compatible insert size codeDGG; DGL; DGM; DGS; DTE; DTM; DTR; DTX; SGM; SGN; SGS; STR
Complete insert compatibilityDGG; DGM; DGS; SGM; SGN; SGS
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderRight Hand
Head length1.4570
Insert compatibilityDG..; SG..
Insert holding methodClamp
Insert seat size2.0
Internal or externalExternal
Manufacturers catalog numberCTER16-2T17
Maximum depth of cut0.6690
Minimum groove width0.0790
Mount size16
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.5430
Shank width diameter1.0000
StandardsISO
Toolholder styleCTE
