Tungaloy

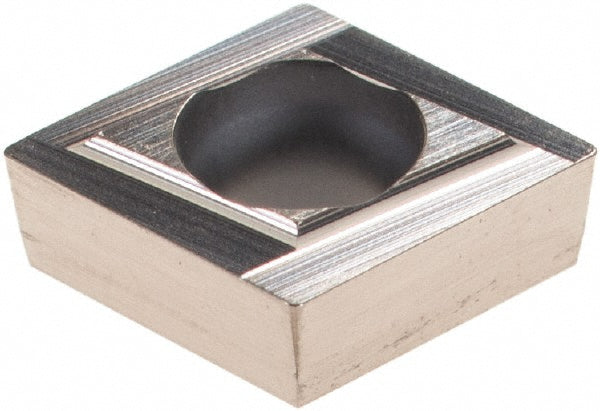

CCGT 21.50.5 Cermet Insert, Grade NS9530 - Tungaloy 6997910
MFR# 6997910ISO/ANSI# CCGT 21.50.5Series CCGT
$17.23List $22.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeNS9530
MaterialCermet
Description
The Tungaloy 6997910 is a CCGT 21.50.5 cermet indexable insert, grade NS9530. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerCommon
Clearance codeC
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCGT 21.50.5
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCermet
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT 21.50.5
Length range0.0000 - 0.3000
Manufacturers catalog number6997910
Manufacturer gradeNS9530
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
