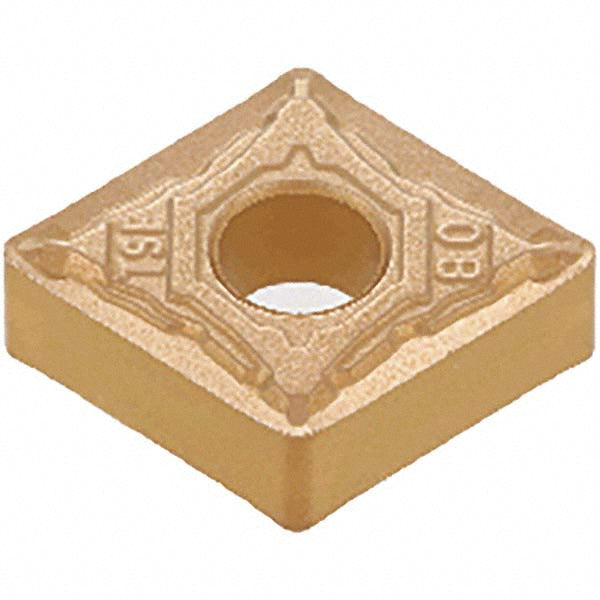

CNMG 432 TSF Cermet Insert, Grade GT9530, TiCNO - Tungaloy 6998060

Tungaloy

CNMG 432 TSF Cermet Insert, Grade GT9530, TiCNO - Tungaloy 6998060

MFR# 6998060ISO/ANSI# CNMG 432 TSFSeries CNMG-TSF

$14.11List $18.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeGT9530
MaterialCermet
CoatingTiCNO

Description

The Tungaloy 6998060 is a CNMG 432 TSF cermet indexable insert, grade GT9530, TiCNO coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerTSF
Clearance codeN
Coating finishTiCNO
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432 TSF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCermet
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432 TSF
Length range0.5000 - 0.6000
Manufacturers catalog number6998060
Manufacturer gradeGT9530
Material gradeP10; P20; M20; K10
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
