Tungaloy

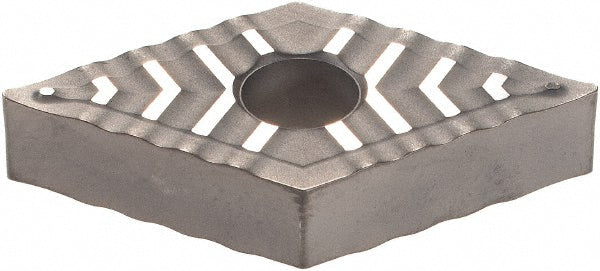

DNMG431-27 Cermet Insert, Grade NS9530 - Tungaloy 6998271
MFR# 6998271ISO/ANSI# DNMG 431-27Series DNMG-27
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeNS9530
MaterialCermet
Description
The Tungaloy 6998271 is a DNMG431-27 cermet indexable insert, grade NS9530. Suited for steel, stainless steel, cast iron.
Specifications
Chip breaker27
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG 431-27
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCermet
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG431-27
Length range0.7000 - 10.0000
Manufacturers catalog number6998271
Manufacturer gradeNS9530
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
