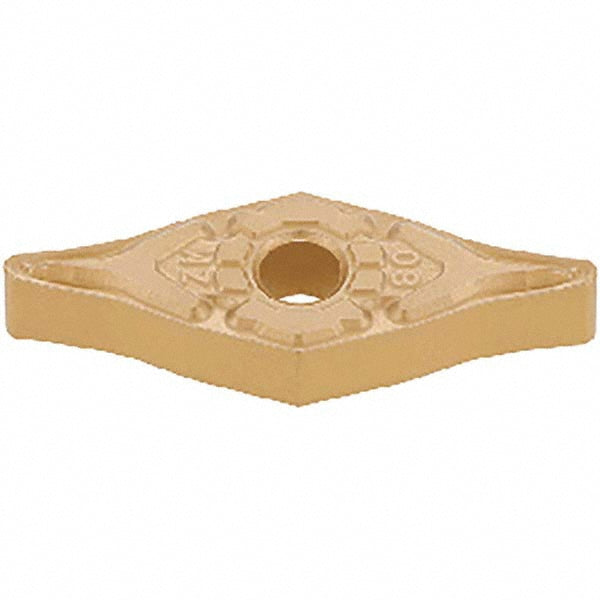

YNMG160408-ZM Cermet Insert, Grade GT9530, TiCNO - Tungaloy 6998641

Tungaloy

YNMG160408-ZM Cermet Insert, Grade GT9530, TiCNO - Tungaloy 6998641

MFR# 6998641ISO/ANSI# YNMG 332 ZMSeries YNMG-ZM

$18.01List $23.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeGT9530
MaterialCermet
CoatingTiCNO

Description

The Tungaloy 6998641 is a YNMG160408-ZM cermet indexable insert, grade GT9530, TiCNO coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerZM
Clearance codeN
Coating finishTiCNO
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle25degree
Industry standard numberYNMG 332 ZM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCermet
Insert shapeDiamond 35
Insert size code332
Insert styleYNMG
Insert thickness in3/16
Iso codeYNMG160408-ZM
Length range0.7000 - 10.0000
Manufacturers catalog number6998641
Manufacturer gradeGT9530
Material gradeP10; P20; M20; K10
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle-7
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
