Tungaloy

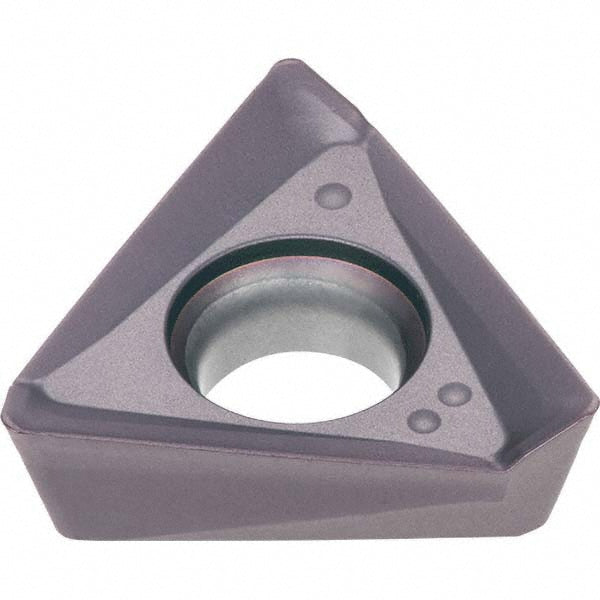

TOMT150620PDER-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6999340
MFR# 6999340ISO/ANSI# TOMT150620PDER-MJ AH120Cat# TOMT150620PDER-MJSeries TOMT
$22.96List $29.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6999340 is a TOMT150620PDER-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeTOMT150620PDER-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityEPA15; TPA15; TLA15-M; TLA15-S; TLA15-BT; C-EPA; C-TLA
Cutting edge styleHoned
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size15
Insert size code150620
Insert styleTOMT
Iso codeTOMT150620PDER-MJ AH120
Length0.6180
Length range0.6000 to 0.6500
Manufacturers catalog numberTOMT150620PDER-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.5910
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsISO
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.6180
