Ultra-Dex

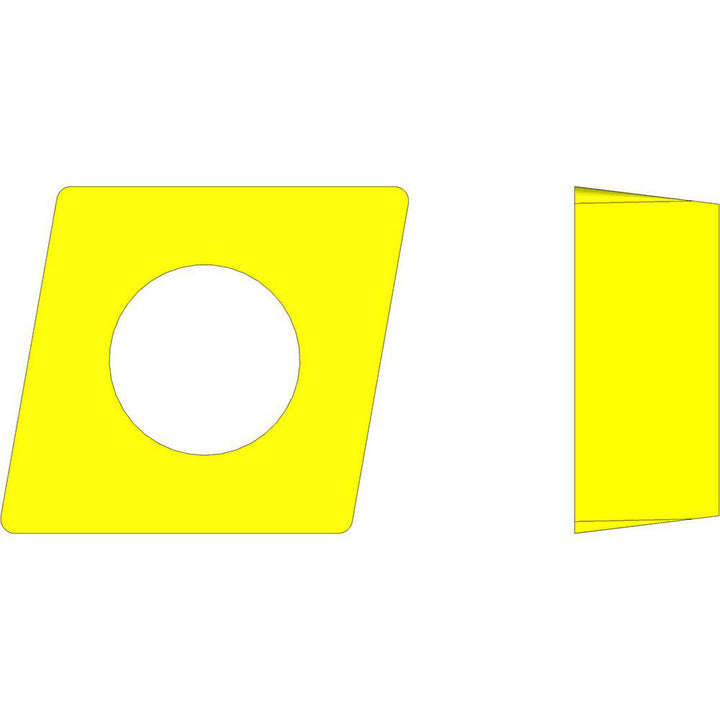

Diamond 7/32" IC Carbide Insert, Grade UD52, TiAlN - Ultra-Dex 913-000-214
MFR# 913-000-214Series CPMT
$20.44List $28.22
Save 27%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeDiamond
GradeUD52
MaterialCarbide
CoatingTiAlN
Description
The Ultra-Dex 913-000-214 is a carbide indexable insert, grade UD52, TiAlN coated. Suited for steel, superalloys & titanium.
Specifications
ChipbreakerLX6
Coating finishTiAlN
Corner radius in1/64
Included angle80
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code1.81.21
Insert styleCPMT
Length0.2190
Manufacturers catalog number913-000-214
Manufacturer gradeUD52
Maximum depth of cut0.0729
Number of cutting edges2
Primary workpiece materialSteel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Width0.2188
