Vlier

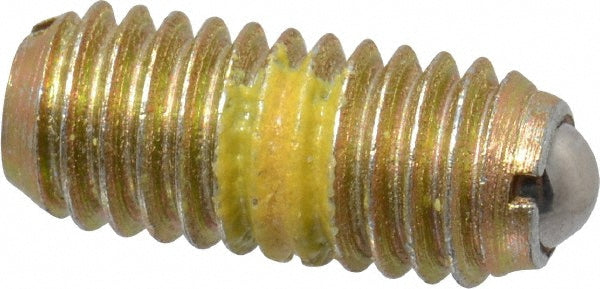

M6 x 1 Spring Plunger - Vlier BMH6AP
MFR# BMH6AP
$4.40List $5.52
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier BMH6AP is a M6 x 1 steel spring plunger.
Specifications
ApplicationControlled End Force; Smallest & Lightest Spring-Loaded Device
Ball diameter0.1370
Ball materialSteel
Body length0.5510
Body materialSteel
Color codePurple
Final end force lb9.00
Final end force n40.00
Initial end force lb6.29
Initial end force n28.00
Locking elementYes
Maximum ball reach0.0390
Thread pitch1mm
Thread sizeM6 x 1
