Vlier

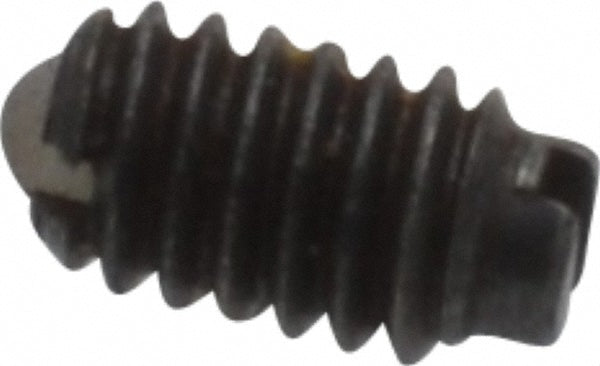

4-48 Spring Plunger - Vlier DB46P
MFR# DB46P
$5.20List $6.53
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier DB46P is a 4-48 steel spring plunger.
Specifications
ApplicationControlled End Force
Ball diameter0.0620
Ball materialNylon
Body length0.1870
Body materialSteel
Color codePurple
Final end force lb0.50
FinishZinc-Plated
Initial end force lb0.13
Locking elementYes
Maximum ball reach0.0200
Thread size4-48
