Vlier

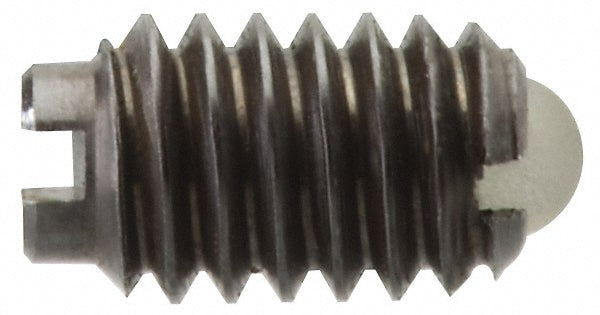

5/16-18 Spring Plunger - Vlier DB56N
MFR# DB56N
$5.59List $7.02
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier DB56N is a 5/16-18 steel spring plunger.
Specifications
ApplicationControlled End Force
Ball diameter0.1560
Ball materialNylon
Body length0.5780
Body materialSteel
Color codePurple
Final end force lb9.00
FinishZinc-Plated
Initial end force lb4.00
Locking elementYes
Maximum ball reach0.0400
Thread size5/16-18
