Vlier

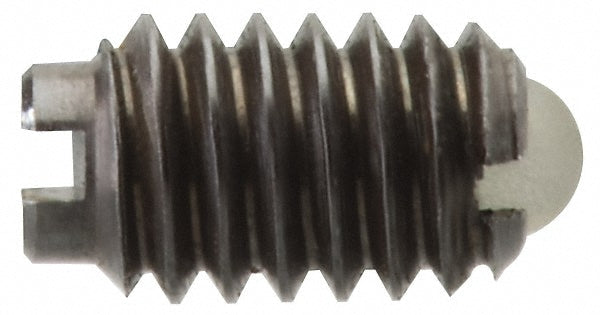

5/16-18 Spring Plunger - Vlier DBH56
MFR# DBH56
$5.19List $6.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier DBH56 is a 5/16-18 steel spring plunger.
Specifications
ApplicationControlled End Force
Ball diameter0.1560
Ball materialNylon
Body length0.5780
Body materialSteel
Color codePurple
Final end force lb17.00
FinishZinc-Plated
Initial end force lb6.00
Locking elementNo
Maximum ball reach0.0400
Thread size5/16-18
