Vlier

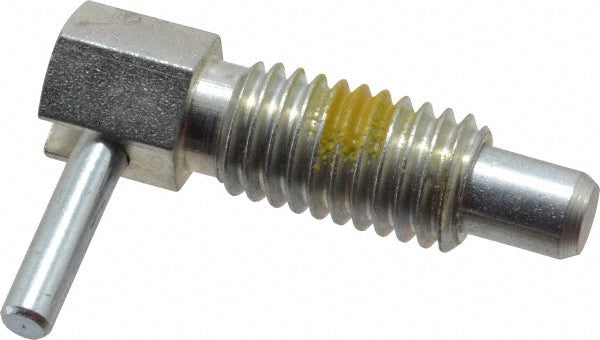

1/2-13 in Spring Plunger - Vlier FRS500P
MFR# FRS500P
$17.31List $21.73
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier FRS500P is a 1/2-13 in spring plunger.
Specifications
Body length1.5000
Final end force2lb
Final end force lb2.00
Handle diameter0.1900
Handle length0.7500
Handle materialSteel
Head height0.5in
Hex size0.5000
Initial end force0.5lb
Initial end force lb0.50
Length between head thread0.15in
Length under head1.0000
Locking elementYes
Plunger diameter0.31in
Plunger length1.5000
Plunger projection0.4000
Plunger typeLocking
Thread length0.85in
Thread size1/2-13 in
