Vlier

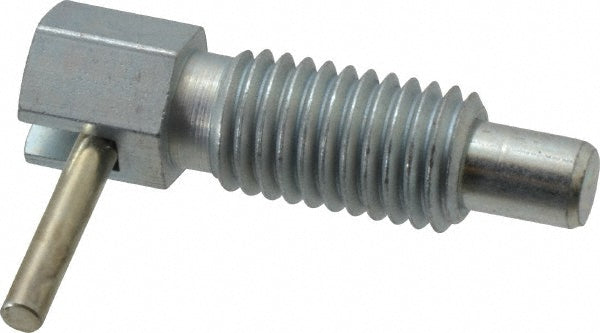

5/8-11 in Spring Plunger - Vlier FRS625
MFR# FRS625
$17.79List $22.32
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier FRS625 is a 5/8-11 in spring plunger.
Specifications
Body length1.8800
Final end force2.5lb
Final end force lb2.50
Handle diameter0.1900
Handle length0.8800
Handle materialSteel
Head height0.63in
Hex size0.6200
Initial end force0.75lb
Initial end force lb0.75
Length between head thread0.18in
Length under head1.2500
Locking elementNo
Plunger diameter0.38in
Plunger length1.8800
Plunger projection0.5000
Plunger typeLocking
Thread length1.07in
Thread size5/8-11 in
