Vlier
5/16-18 Spring Plunger - Vlier NS56N
MFR# NS56N
$5.44List $6.82
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

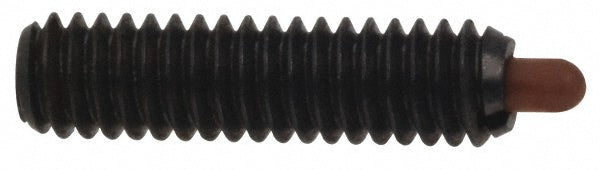

The Vlier NS56N is a 5/16-18 steel spring plunger.
Specifications
Body length in1
Body materialSteel
Final end force lb15.00
Initial end force lb3.00
Locking elementYes
Maximum plunger diameter0.1350
Minimum plunger diameter0.1330
Nose materialPhenolic
Plunger length in1
Plunger length typeStandard
Plunger projection in3/16
Thread length in1
Thread size5/16-18
