Vlier

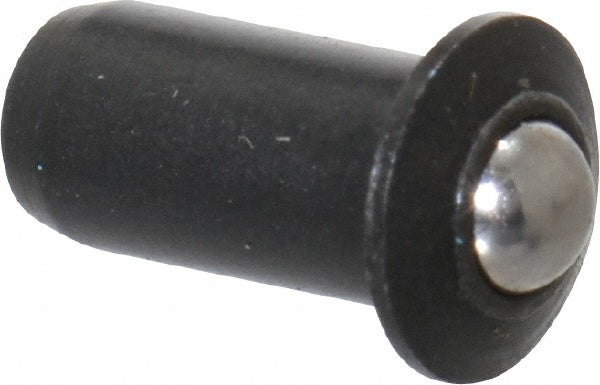

Spring Plunger - Vlier PFB48
MFR# PFB48
$2.55List $3.21
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier PFB48 is a steel spring plunger.
Specifications
Ball diameter0.1560
Ball materialStainless Steel
Body diameter0.1250
Body length0.2520
Body materialSteel
Final end force lb2.50
FinishBlack
FlangeYes
Flange diameter0.1870
Flange thickness0.0320
Initial end force lb0.75
Length under flange0.2520
Locking elementNo
Maximum ball reach0.0350
Tolerance (mm)+0.002
