Vlier
M10x1.5 Spring Plunger - Vlier PRSNM10
MFR# PRSNM10
$17.66List $21.89
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

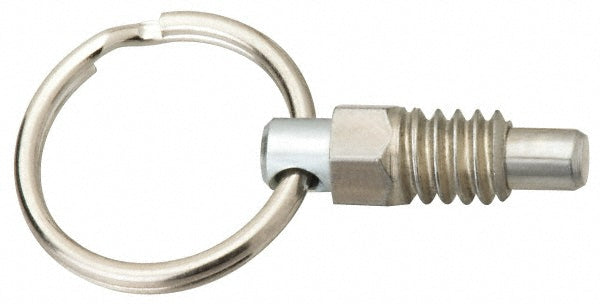

The Vlier PRSNM10 is a M10x1.5 steel spring plunger.
Specifications
Body length0.6300
Final end force13.3N; 3lb
Final end force lb3.00
Head height0.19in; 4.83mm
Hex size10mm
Initial end force3.3N; 0.75lb
Initial end force lb0.75
Length under head0.4400
Locking elementNo
MaterialSteel
Plunger diameter0.25in; 6mm
Plunger length0.8200
Plunger projection0.2800
Plunger typeNon-Locking
Ring diameter0.7500
Thread length0.31in; 7.87mm
Thread sizeM10x1.5
